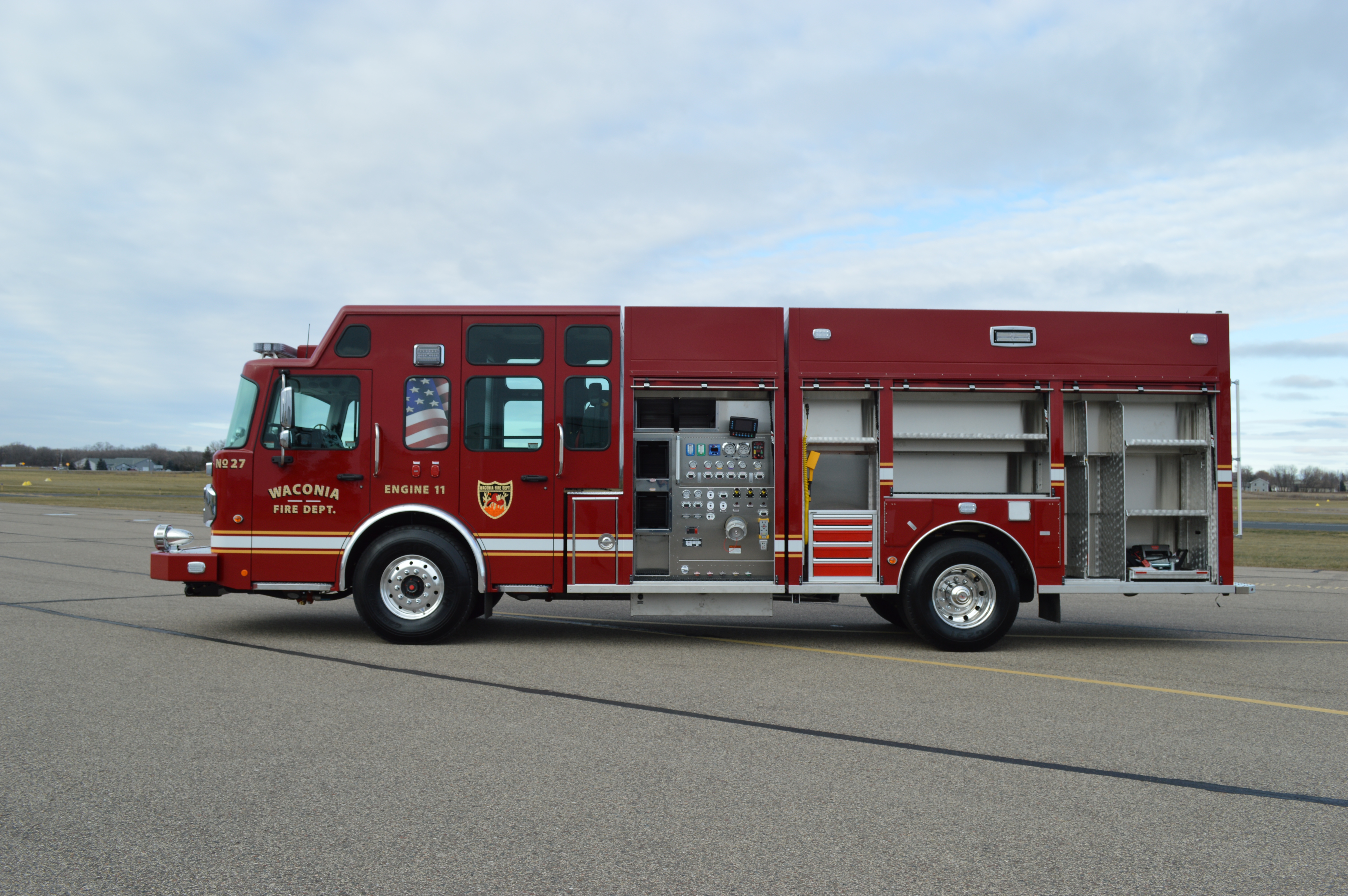

Rescue Pumper

Custom built for Waconia Fire Department — Waconia, MN

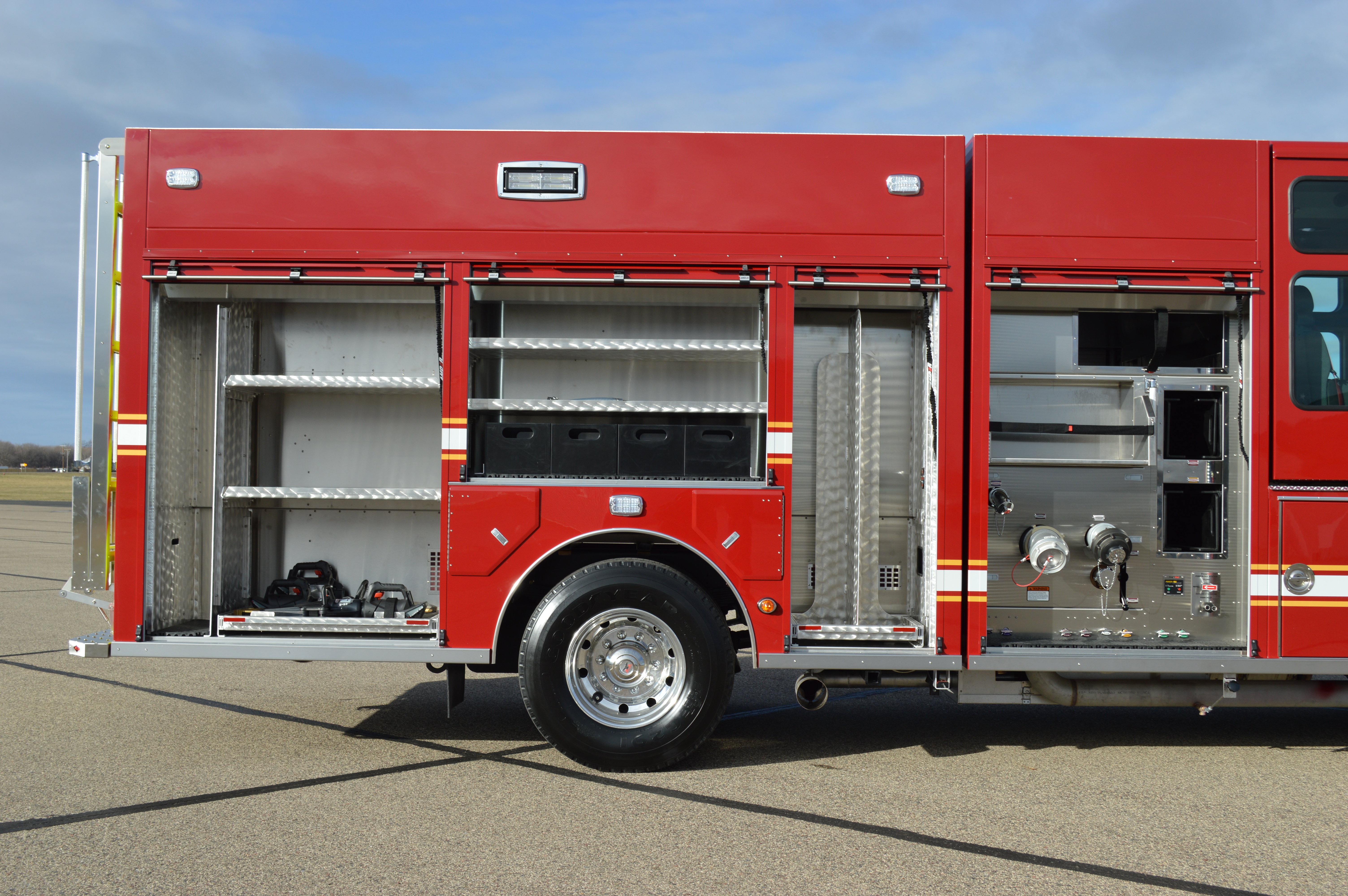

Spartan Chassis, Bolted Stainless Steel Body, Waterous 1500gpm Pump, FoamPro 2002 Foam System, 1000-Gallon Water Tank, Adjustable Shelving, Pull-Out Compartment Trays, Slide-In Ladder Storage, Hydraulic Generator, Electric Cord Reels, Will-Burt Light Tower


Truck Type : , ,
Cab Type : , ,
Deployed : December, 2018

Chassis Model

Spartan Gladiator Chassis
Cummins L9 450hp Engine
Allison 300 EVS Transmission

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Waterous CSUC20 1500gpm Midship Mounted Pump
FoamPro 2002 Single Agent Foam System
On-Board Powered Foam Refill System
Fire Research PumpBoss Pressure Governor
Waterous Oil-Less Pump Primer
Suction Pre-Primes
Front 6" Suction
Passenger Side 6" and 2-1/2" Suctions
Driver Side 6" Suction
Passenger Side 2-1/2" and LDH Discharges
Rear 2-1/2" Discharges
Deluge Discharge
Front Bumper 2" Preconnect Discharge
Speedlay 2-1/2" and 2" Discharges

Booster Tank

1000-Gallon Poly Water Tank by UPF
30-Gallon Foam Cell

Special Features

Front Bumper Extension with Hosewell
Under Body Winch Receivers
Encapsulated Roll-Up Door Protection
Adjustable Compartment Shelving
Pull-Out Compartment Trays
C-TECH 4-Drawer Tool Box
Slide-In Suction Hose and Strainer Compartment
Wheel Well SCBA Cylinder Storage
Wheel Well Extinguisher Storage
Slide-In Ladder and Pike Pole Storage
Harrison Hydraulic Generator
Power Rewind Electric Cord Reels
Will-Burt Nightscan Light Tower

Emergency Warning Devices

Federal Q2B Mechanical Siren
Air Horns
Cast Products Siren Speaker
Whelen LED Lightbar
Whelen LED Traffic Directing Lightbar
Whelen LED Warning Lights

Exterior Lighting

Vertical Strip LED Compartment Lighting
LED Step Lights
LED Marker Lights
Whelen LED Tail Lights
Under Cab and Under Body Lights
Whelen Cab Roof Brow Light
Whelen LED Scene Lighting

Vehicle Dimensions

Overall Height 10' 7"
Overall Length 34' 6"
Wheelbase 16' 8"
Weight with Water 42,600 Lbs.
