Full Response® Pumper
Custom built for Saint Peter Fire Department — Saint Peter, MN
Peterbilt Chassis, Stainless Steel Bolted Body, Waterous CSUC20 1750gpm Pump, FoamPro 2002 Single Agent Foam System, 1000-Gallon Tank, 30-Gallon Foam Cell, Hydraulic Drop-Down Ladder and Tank Racks, Pull-Out Compartment Tool Boards, Pull-Out Compartment Trays, Adjustable Shelving, Hydraulic Generator
Truck Type : Full Response®, Pumpers
Cab Type : Commercial Cab, Enclosed Top Mount, Full Response Cab
Deployed : May, 2013
Chassis Model
Peterbilt 348 Chassis
Paccar PX-8 380hp Engine
Allison 3000 EVS Transmission
Cab Details
Full Response Cab
Combo Air Conditioner-Heater
Overhead Cabinets with Lighting
Interior Crew Cab Storage
Pump Operator's Control Panel
Apparatus Body
Concealed Bolted Construction
Stainless Steel Material
Roll-Up Compartment Doors
Fire Pump System
Waterous CSUC20 1750gpm Midship Pump
FoamPro 2002 Single Agent Foam System
Waterous 200cfm CAFS
Fire Research PumpBoss Pressure Governor
Waterous Oil-Less Pump Primer
Passenger Side Suction Pre-Prime
Driver Side Suction Pre-Prime
Rear Suction Pre-Prime
Passenger Side 6" and 2-1/2" Suctions
Rear 6" Suction
Driver Side 6" and 2-1/2" Suctions
Passenger Side 2-1/2" and LDH Discharges
Passenger Side Running Board 2" Preconnect
Rear Driver and Passenger Side 2-1/2" Discharges
Driver Side 2-1/2" and LDH Discharges
Top Deluge Discharge
Hose Reel Discharges
35,000 BTU Pump Heater
Booster Tank
1000-Gallon Water Tank
30-Gallon Foam Cell
Special Features
Rear Observation and Audio Monitoring System
Stainless Steel Helmet Holders
Roll-Up Door Protective Shrouds
Hydraulic Drop-Down Equipment Racks on Each Side
Adjustable Compartment Shelving

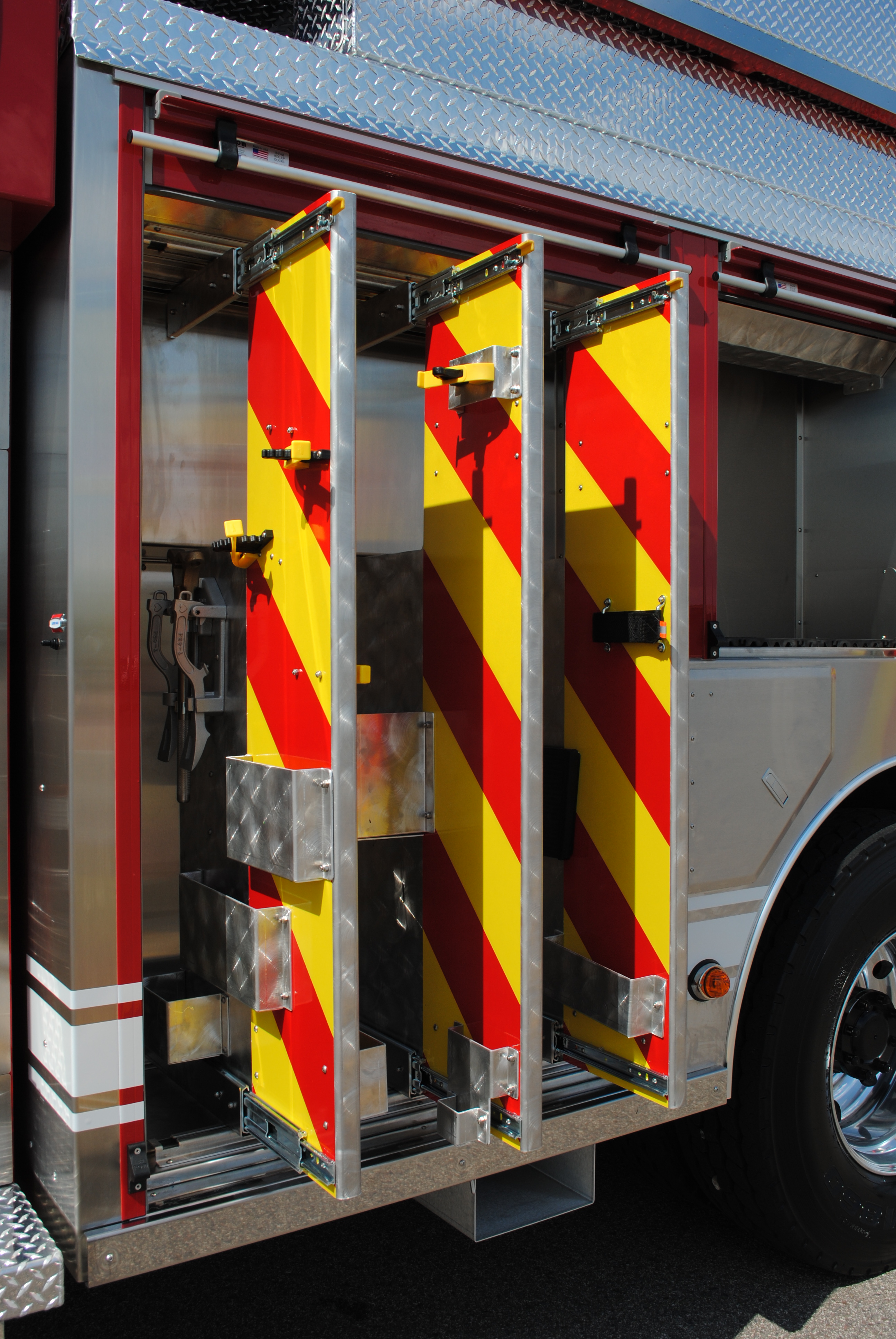

Pull-Out Compartment Tool Boards
Pull-Out Compartment Trays
Swing-Out Tool Panels
Suction Hose Storage Sleeve
Aluminum Hosebed Covers
Wheel Well SCBA Cylinder Storage
Rear Access Ladders
Onan 10kW Hydraulic Generator
Power Rewind Electric Cord Reels
Will-Burt Nightscan Light Tower
Emergency Warning Devices
Whelen LED Grille Lights
Whelen LED Intersect Lights
Dual Chrome Air Horns
Whelen Electronic Siren
100-watt Speaker
Federal Q2B Mechanical Siren
Whelen LED Cab Roof Lightbar
Whelen LED Crew Cab Lightbar
Whelen LED Traffic Advisor
Whelen LED Warning Lights
Exterior Lighting
LED Marker Lights
Whelen LED Tail Lighting
Under Cab and Under Body Lighting
LED Pump Compartment Lights
Vehicle Dimensions
Height 11' 5"
Length 32' 3"
Wheelbase 14' 7"
Weight with Water 38,780 Lbs.
