Enclosed Top Mount Pumper

Custom built for Roseau Volunteer Fire Department — Roseau, MN

Spartan MetroStar Chassis, Bolted Stainless Steel Body, Waterous 1250gpm Pump, FoamPro 2001 Foam System, 1000-Gallon Water Tank, Adjustable Shelves, Pull-Out Compartment Trays, Pull-Out Tool Boards, Wheel Well SCBA Cylinder and Floor Dry Storage, Slide-In Ladder and Pike Pole Storage, Rear Swing-Out and Down Ladder, LED Warning Lights


Truck Type : ,
Cab Type : ,
Deployed : May, 2018

Chassis Model

Spartan MetroStar Chassis
Cummins ISL 380hp Engine
Allison 3000 EVS Transmission

Cab Details

SCBA Seating
Enclosed Pump Controls

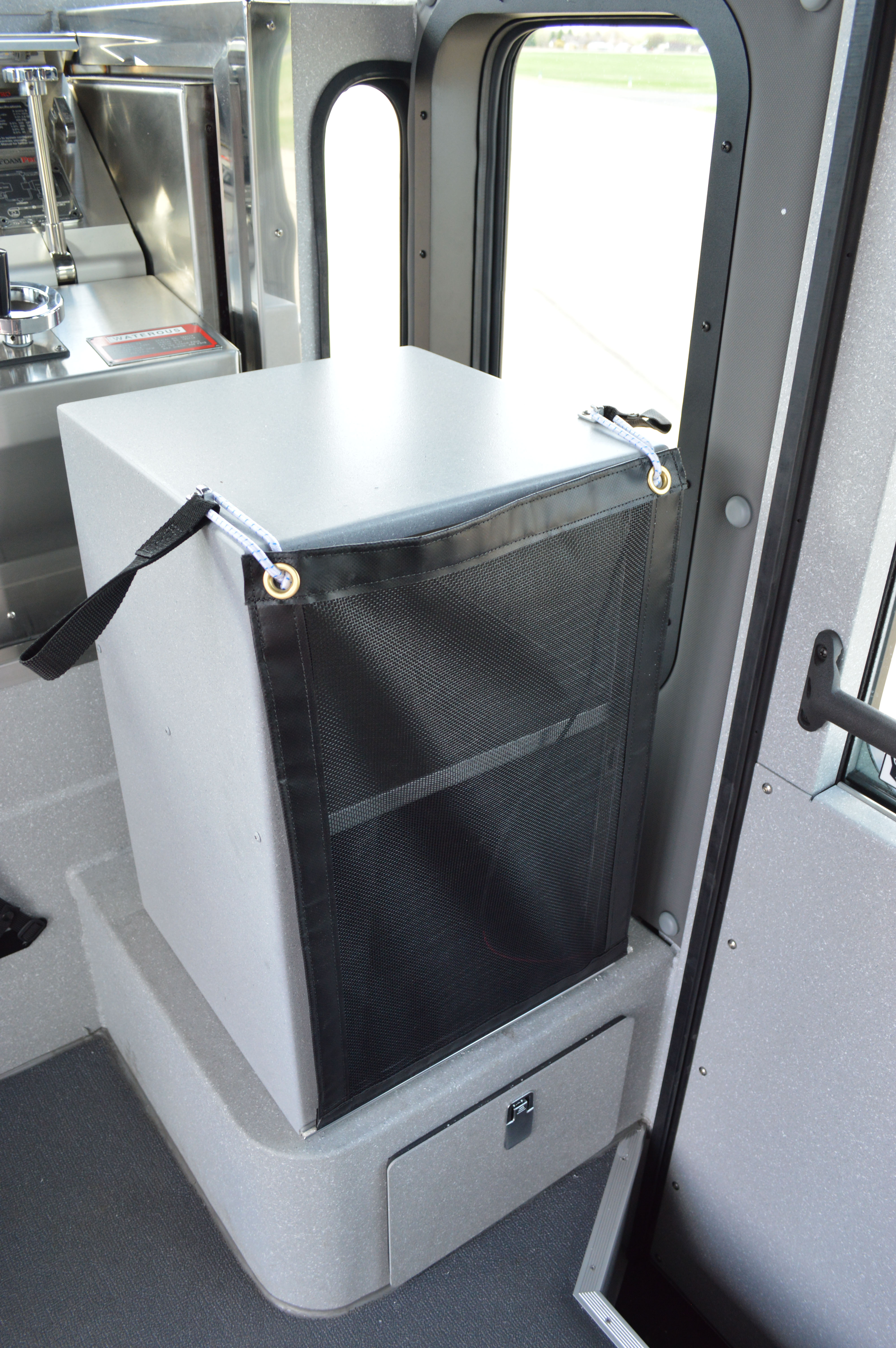

EMS Cabinet

Apparatus Body

Concealed Bolted Construction
Stainless Steel Body Material
Stainless Steel Subframe
Roll-Up Compartment Doors

Fire Pump System

Waterous CSC20 1250gpm Midship Pump
FoamPro 2001 Foam System
Fire Research PumpBoss Pressure Governor
Waterous Oil Less Pump Primer
Passenger Side 6" and 2-1/2" Suctions
Rear 6" Suction
Driver Side 6" and 2-1/2" Suctions
Front Bumper 2" Preconnect Discharge
Passenger Side 2-1/2" Discharge
Rear Hosebed 2-1/2" Discharges
Driver Side 2-1/2" and LDH Discharges
Top Deluge Discharge
Speedlay 1-1/2" Preconnect Discharges

Booster Tank

1000 Gallon Water Poly Tank
20 Gallon Foam Cell

Special Features

Front Bumper Extension with Hosewell
Under Body Winch Receivers
Adjustable Compartment Shelving
Pull-Out Compartment Tray
Pull-Out Compartment Tool Boards
SCBA Cylinder Rack
Custom Mounts for Rescue Tools
Slide-In Suction Hose Sleeve Compartment
Wheel Well Floor Dry Compartment
Wheel Well Extinguisher Storage
Slide-In Ladder and Pike Pole Storage
Rear Swing-Out and Down Access Ladder
Rear Observation Camera
Battery Charger with Air Compressor

Emergency Warning Devices

Electronic Siren and Speaker
Whelen LED Lightbar
LED Traffic Advisor
Techniq LED Warning Lights

Exterior Lighting

Vertical Strip LED Compartment Lighting
LED Marker Lights
Whelen LED Tail Lighting
Under Body and Under Cab Lighting
LED Scene Lights
Telescoping Flood Lights

Vehicle Dimensions

Overall Height 10' 10"
Overall Length 35' 9"
Wheelbase 18' 8"
Weight with Water 41,250 Lbs.
